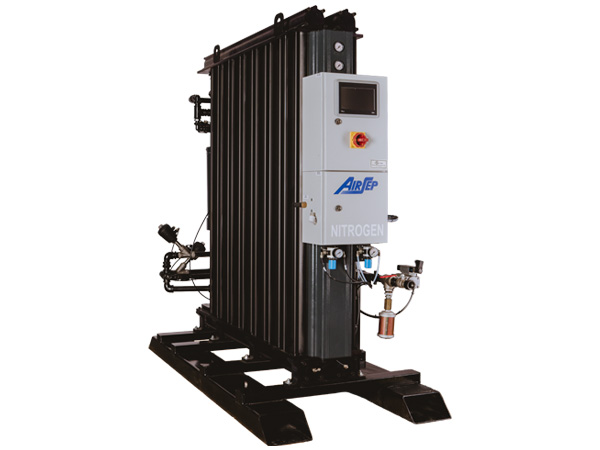

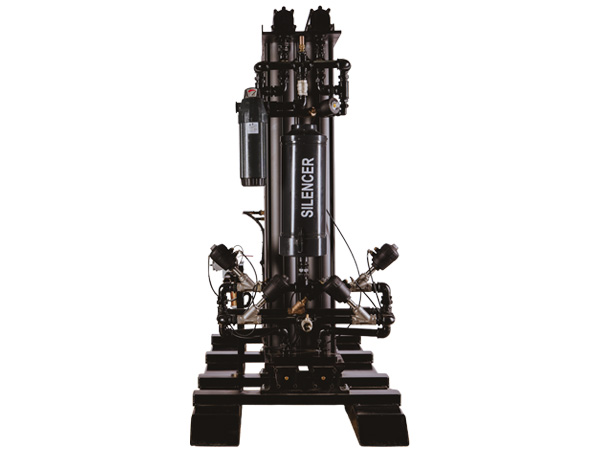

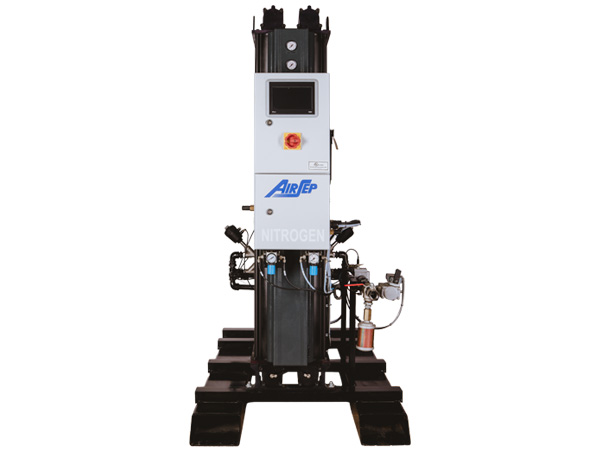

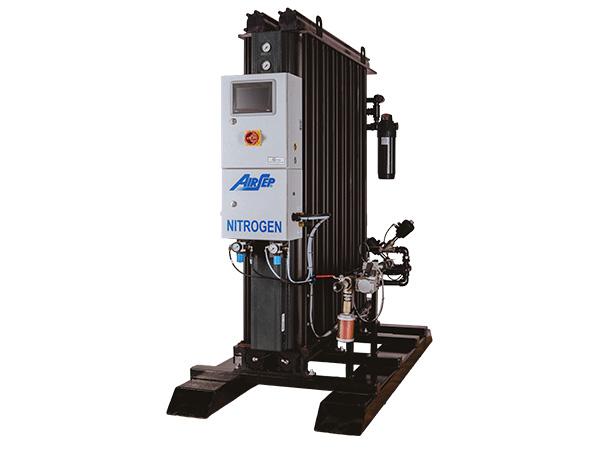

N2WAVE™ Modular Series PSA Nitrogen Gas Generators

The N2WAVE™ Modular Series is a scalable nitrogen generator and modular PSA nitrogen system that delivers on-site nitrogen for growing commercial and industrial operations, from manufacturers and food processors to laboratories and OEMs. Each modular nitrogen generator produces nitrogen at flows from 1.8 CFM to 117.8 CFM at 95% purity, and from 0.2 CFM to 12 CFM at 99.999% purity, at outlet product pressures up to 124 PSIG.

An Expandable Nitrogen Plant That Grows with You

Easy to install and operate, the N2WAVE Modular Series has a small footprint that can expand to accommodate future growth. When your flow requirements increase, simply add another modular unit. This modular gas generation approach also eliminates the hidden costs of delivered nitrogen, including rental fees, delivery charges, and environmental surcharges.

How Modular PSA Nitrogen Generation Works

Pressure swing adsorption (PSA) is a non-cryogenic air separation process. AirSep Pressure Swing Adsorption (PSA) Nitrogen Gas Generators use a carbon molecular sieve (CMS) to separate nitrogen from compressed air. CMS adsorbs oxygen molecules under pressure and allows nitrogen to pass through as a product gas.
AirSep PSA Modular Gas Generators use columns filled with CMS as adsorbers. As compressed air passes through one of the adsorbers, the molecular sieve adsorbs the oxygen. This allows the remaining nitrogen to pass through and exit the adsorber as a product gas. Before the adsorber becomes saturated with oxygen, the inlet air flow switches to the next adsorber. The first adsorber is now regenerated by desorbing the oxygen through depressurization back to the atmosphere, assisted by a nitrogen purge step. The complete cycle then repeats. Under normal operating conditions and with proper system maintenance, the molecular sieve is designed to be regenerative.

Request a quote to size an N2WAVE Modular system for on-location nitrogen generation that meets your business needs today, with the flexibility to grow tomorrow.


Applications



Manufacturing & Metal Industry
  • Aluminum Degassing
  • Aluminum Extrusion
  • Aluminum Soldering
  • Sheet Welding
  • Heat Treatment
  • Brazing
  • Laser Cutting and Laser Bellows Purge
  • Modified Atmosphere Packaging (MAP)
  • Nitrogen CO2 Gas Mix Beer Drafting
  • Wine Bottle Capping
Electronics
  • Soldering
  • Adhesive Protection
  • Dry Box Storage
  • Cleaning
Chemical
  • Tank Blanketing
  • Vessel/Paint Protection
  • Natural Gas Enrichment
  • Ship Chemical Tank Protection/Cleaning
  • Gas Barrier
Plastics
  • High Pressure Plastic Injection Molding
  • Product Packaging
  • Chemical Blanketing
  • DI Water Blanketing

Standard
  • Silencer
  • 7” HMI Touch Screen
  • Tank Manometers
  • Pressure Transmitter
  • ECO Mode
  • Mist Eliminator/Carbon Filter
  • Piston Valves
  • Valve Control Regulator
  • 3 Way By-Pass Valve Kit
  • Flowmeter Kit
  • Post/Dust Filter
  • Oxygen Analyzer Kit
Optional
  • Receiver
  • Dew Point Sensor Kit
  • Pressure Regulator (Nitrogen Outlet)
  • Oil Indicator
