Oxygen Products
AirSep oxygen cylinder refilling plants are turnkey oxygen cylinder filling systems that produce and refill medical or commercial oxygen cylinders on site, with capacities from 1 to hundreds of cylinders per day. Also known as a medical cylinder filling station, cylinder filling plant, or oxygen bottling equipment, each system is built to your cylinder count and application.
Centrox-CR Oxygen Cylinder Refilling Station
Available as a generator or a medical 510(k)-cleared concentrator, the Centrox-CR has an outlet pressure of 2,200 psig and fills 1 cylinder at a time. Customized plants can fill multiple cylinders simultaneously.

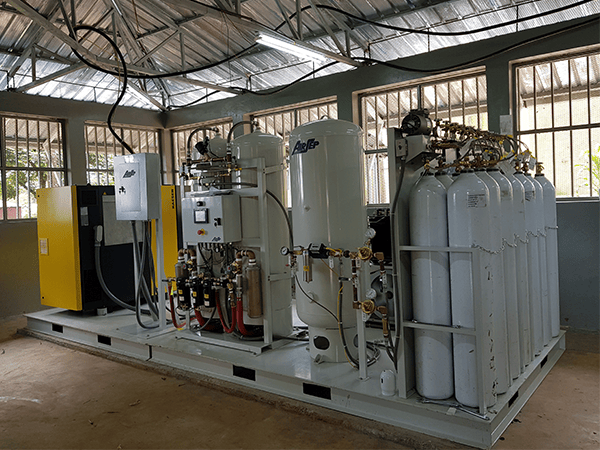

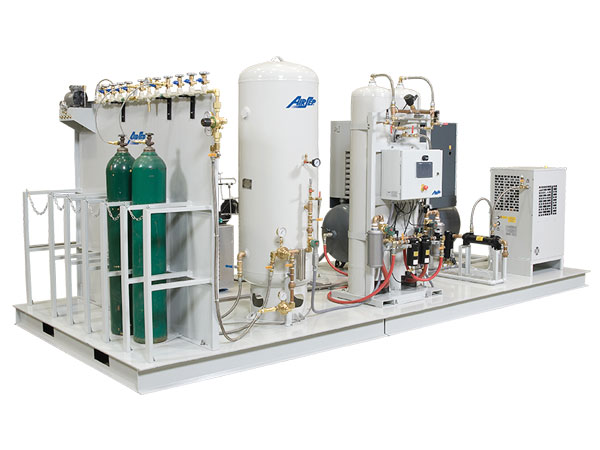

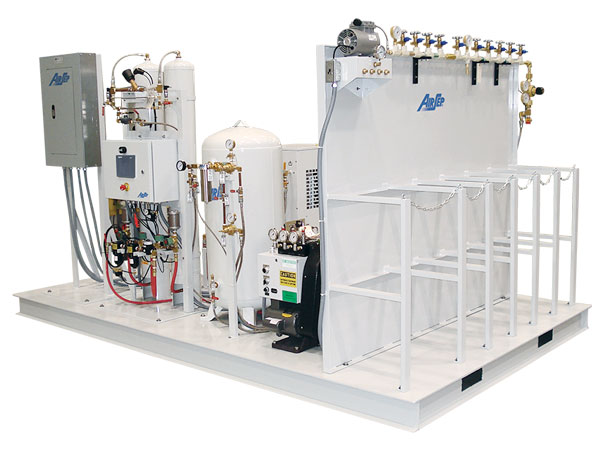

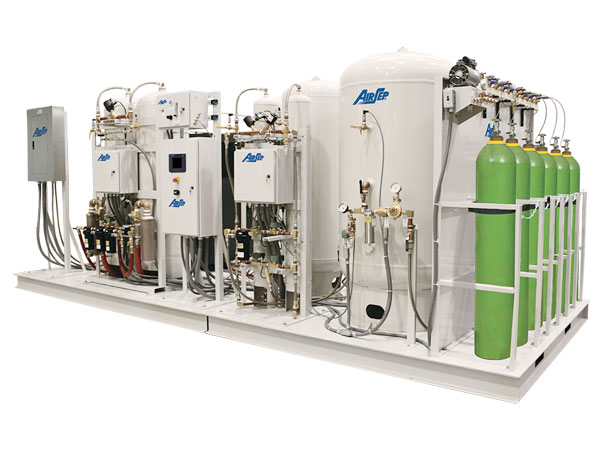

Complete Cylinder Charging Plants
Each complete plant includes a feed air compressor, feed air dryer, oxygen generator, oxygen compressor, and cylinder filling rack. The oxygen compressor delivers oxygen at up to 2,200 psig (15,169 kPa or 151.6 barg) to a high-pressure manifold that can fill up to 10 cylinders at a time.
These oxygen refilling plants operate automatically and generate a nominal 93% oxygen. For special applications, an optional high-purity module increases oxygen concentration to 99% ±0.5%.
For hospitals, gas distributors, emergency services, and remote facilities, an AirSep medical oxygen filling system puts cylinder supply on site. Request a quote or proposal to size your plant.
AirSep Oxygen Cylinder Refilling Packaged Systems
| Models | Capacity – Cylinders/day (Standard K Cylinders (244 SCF)) |
| AS-D-CR | 8 |
| AS-G-CR | 30 |
| AS-J-CR | 60 |
| AS-K-CR | 88.5 |
| AS-L-CR | 127.8 |
Models larger than the AS-L-CR are built to order.
Centrox-CR Oxygen Cylinder Refilling Station
(Generator or Medical 510(k) Cleared Concentrator)
| Cylinder Size | Capacity – Cylinder/day (244 SCF) |
| K | 3 cyl. |
AirSep Oxygen High Purity Packaged Systems
| Typical Models | Cylinder Capacity (Standard ‘K’: 244 SCF) |
| AS-G250-HPCR | 25 |
| AS-J460-HPCR | 46 |
| AS-J600-HPCR | 60 |
| AS-L1060-HPCR | 106 |
