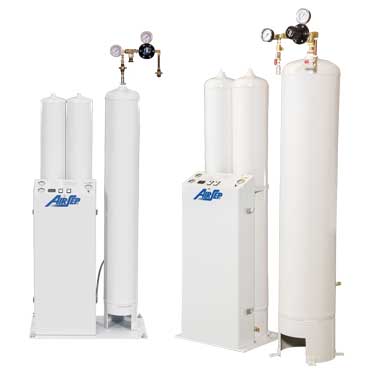

AirSep Mini Pack Series oxygen generators, including the AS-B Mini Pack and AS-D Mini Pack, are a compact, small-scale oxygen generation system that produces 45 to 90 cubic feet of oxygen per hour at up to 95% oxygen concentration.
A Compact PSA Oxygen Plant with a Small Footprint
Designed as a low-flow oxygen generator for applications with fixed flow and pressure characteristics, each Mini Pack PSA oxygen unit uses a reduced-size oxygen receiver for quick start-up and a significantly smaller footprint than comparable systems with a standard, separate receiver. Supply electricity and a source of compressed air, and the Mini Pack delivers reliable on-site oxygen for commercial, aquaculture, water treatment, and industrial applications.
Specifications
Output pressure: 45 to 55 psig (310-379 kPa or 3-3.4 barg)
Dew point: -100°F (-73°C)
Power: 120 VAC or 220 VAC
Need a mini oxygen generator, a compact oxygen generation system, or a packaged oxygen unit sized to your application? Contact AirSep for a quote.
Typical Applications
Features Include
- Produces oxygen from an independent compressed air source
- Microprocessor controlled
- Low operating cost
- Automatic and unattended operation
- Very easy to install and maintain
- Small footprint
Specifications Include
| Model | Product Flow | Product Pressure | ||||
| SCFH* | LPM | Nm3/Hr* | psig | kPa | barg | |
| AS-B Mini Pack | 45 – 55 | 21 – 25 | 1.18 – 1.45 | 45 – 55 | 310 – 379 | 3.0 – 3.4 |
| AS-D Mini Pack | 80 – 90 | 37 – 42 | 2.10 – 2.37 | 45 – 55 | 310 – 379 | 3.0 – 3.4 |
* SCF (Standard cubic foot) gas measured at 1 atmosphere and 70°F / Nm3 (Normal cubic meter) gas measured at 1 atmosphere and 0°C.
