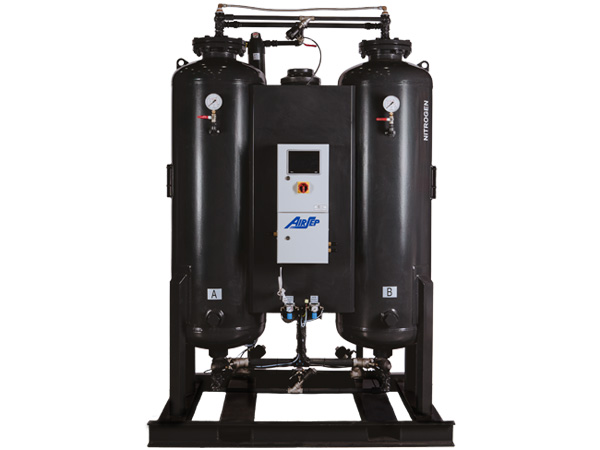

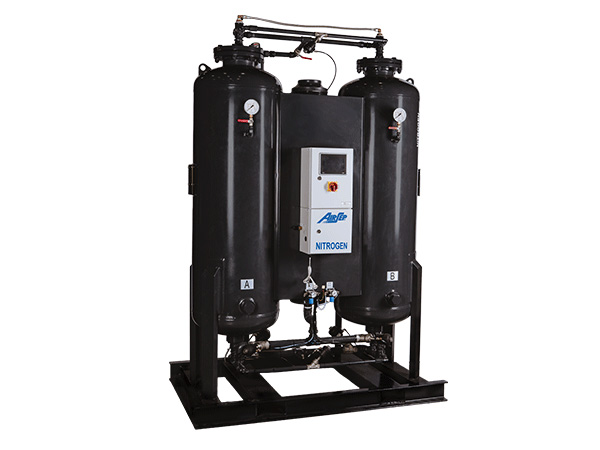

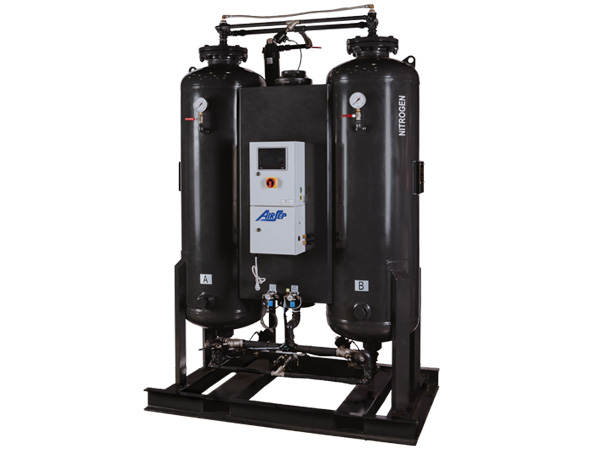

N2WAVE™ Twin Tower Series PSA Nitrogen Gas Generators
- AirSep Sales & Support:
- CALL +1-716-691-0202
- Request a Call
Nitrogen Products
An Efficient, Continuous Nitrogen Generator
Compared to previously available generators, the N2WAVE Twin Tower Series offers a higher level of air-to-nitrogen efficiency and reduced energy consumption. As a continuous nitrogen generator and industrial PSA nitrogen plant, it also eliminates the hidden costs of delivered nitrogen, including rental fees, delivery charges, and environmental surcharges.
How Twin Tower PSA Nitrogen Generation Works
Pressure swing adsorption (PSA) is a non-cryogenic air separation process. AirSep PSA nitrogen gas generators use a carbon molecular sieve (CMS) to separate nitrogen from compressed air. CMS adsorbs oxygen molecules under pressure and allows nitrogen to pass through as a product gas.
AirSep PSA Nitrogen Gas Generators use two vessels filled with CMS as adsorbers. As compressed air passes through one of the adsorbers, the molecular sieve adsorbs the oxygen. This allows the remaining nitrogen to pass through and exit the adsorber as a product gas. Before the adsorber becomes saturated with oxygen, the inlet air flow switches to the next adsorber. The first adsorber is now regenerated by desorbing the oxygen through depressurization back to the atmosphere, assisted by a nitrogen purge step. The complete cycle then repeats. Under normal operating conditions and with proper system maintenance, the molecular sieve is designed to be regenerative.
Need on-location nitrogen at higher flows? Request a quote to size an N2WAVE Twin Tower system to your purity, flow, and pressure requirements. For smaller or growing needs, see the N2WAVE Modular Series modular nitrogen generator.
Applications
Manufacturing & Metal Industry
- Aluminum Degassing
- Aluminum Extrusion
- Aluminum Soldering
- Sheet Welding
- Heat Treatment
- Brazing
- Laser Cutting and Laser Bellows Purge
- Onshore / Offshore Exploration
- Mechanical Gas Seal Inerting
- Enhanced Oil Recovery (EOR)
- Modified Atmosphere Packaging (MAP)
- Nitrogen CO2 Gas Mix Beer Drafting
- Controlled Atmosphere (CA) / Fruit Storage
- Wine Bottle Capping
- Control of Lower Explosive Limits (LEL)
Electronics
- Soldering
- Adhesive Protection
- Dry Box Storage
- Cleaning
Chemical
- Tank Blanketing
- Vessel/Paint Protection
- Natural Gas Enrichment
- Ship Chemical Tank Protection/Cleaning
- Gas Barrier
Plastics
- High Pressure Plastic Injection Molding
- Product Packaging
- Chemical Blanketing
- DI Water Blanketing
Standard Features

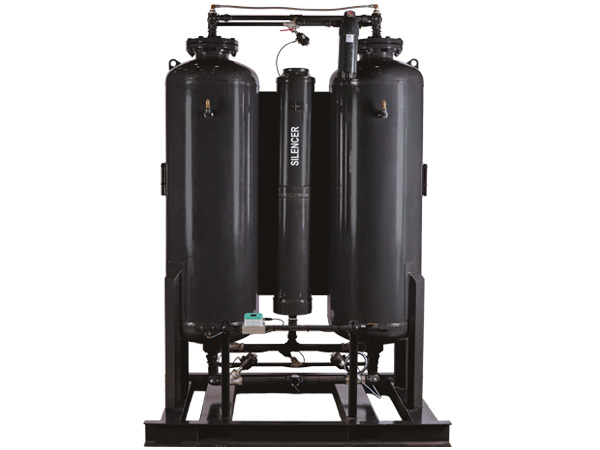

- Silencer
- 7-inch HMI Touch Screen
- Tank Manometers
- Pressure Transmitter
- ECO Mode
- Mist Eliminator/Carbon Filter
- Piston Valves
- Valve Control Regulator
- 3 Way By-Pass Valve Kit
- Flowmeter Kit
- Post/Dust Filter
- Oxygen Analyzer Kit
Optional
- Receiver
- Dew Point Sensor Kit
- Pressure Regulator (Nitrogen Outlet)
- Oil Indicator
