Oxygen Products
AirSep self-contained oxygen generators are compact, all-in-one oxygen systems with a built-in compressor, giving clinics, veterinarians, laboratories, and small manufacturers a turnkey, complete system for on-site oxygen.
A Plug-and-Play Oxygen Generator
With the exception of the Centrox, these compact oxygen generators need no special installation. Connect the oxygen outlet to your application or oxygen distribution system, plug the power cord into a grounded electrical outlet, turn the unit on, and set your oxygen flow rate.
Medical, Veterinary, and Commercial Applications

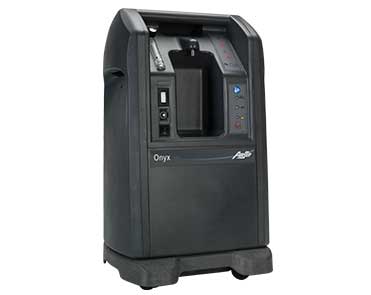

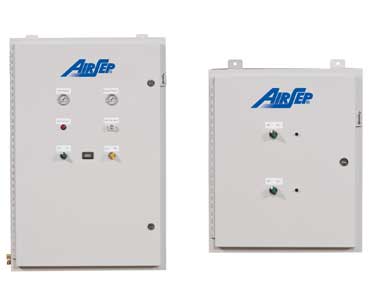

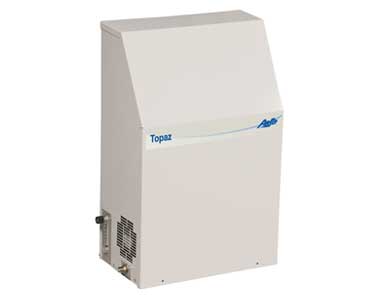

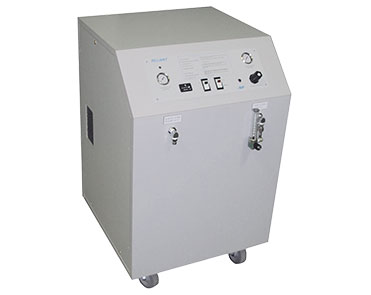

The Reliant and Centrox produce oxygen at the standard 93 percent purity (USP Oxygen 93 Percent) for hospitals, medical clinics, and veterinary medicine. Along with the Onyx Series and Topaz Series, they also work as a compact PSA oxygen system or small oxygen plant for commercial oxygen applications in manufacturing and environmental processes.

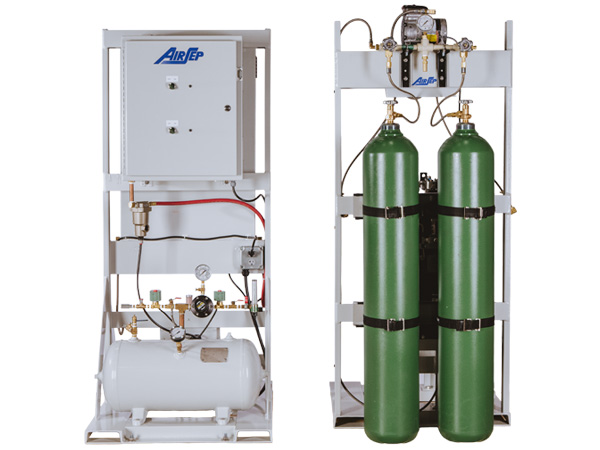

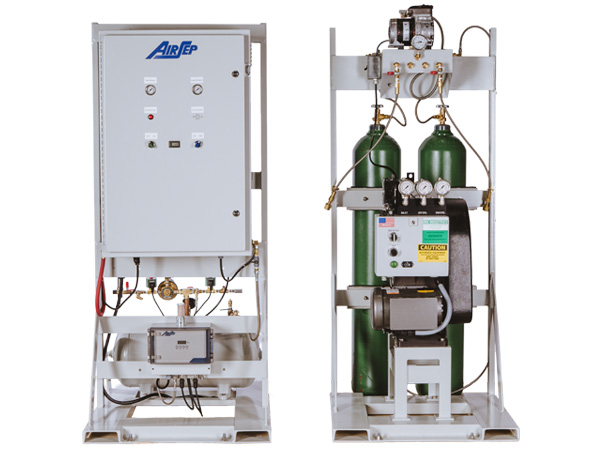

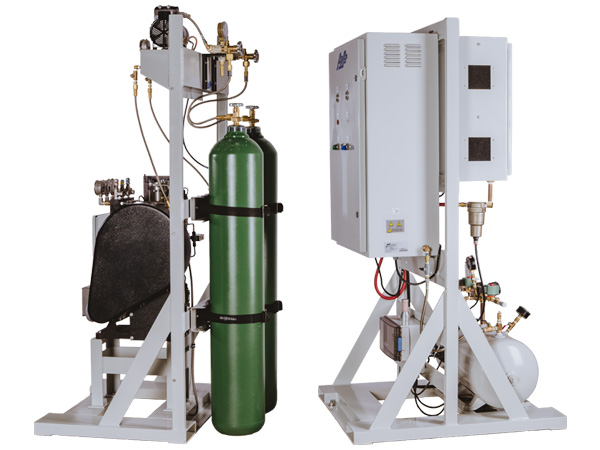

Centrox-CR Oxygen Cylinder Refilling Station
Available as a generator or a medical 510(k)-cleared oxygen concentrator, the Centrox-CR harnesses the power of the Centrox to serve a variety of medical and commercial applications:
- Emergency services
- Remote care facilities
- Aquaculture animal transport
- Aquaculture backup oxygen supply in facilities
- Rough and scrap cutting
The Centrox-CR produces oxygen that meets the U.S. and European Pharmacopeia Oxygen 93 Percent monograph, and AirSep is CAGE/NCAGE registered.
Typical Applications
Manufacturing
- Cutting / Brazing / Soldering
- Thermal / Chemical Oxidation
- Glass Work / Blowing
Additional
Features Include
- Self-contained (includes air compressors)
- Low operating cost
- Advanced Engineering
- Time-proven reliability
Specifications Include
| Model | Product Flow | Product Pressure | ||||
| SCFH* | Nm3/Hr* | LPM* | psig | kPa | barg | |
| Onyx | 10 | 0.3 | 5 | 9 | 62 | 0.62 |
| Onyx Ultra | 21 | 0.55 | 10 | 20 | 138 | 1.37 |
| Topaz | 12 | 0.31 | 6 | 9 | 62 | 0.62 |
| Topaz Ultra | 21 | 0.55 | 10 | 20 | 138 | 1.37 |
| Reliant | 17 | 0.44 | 8 | 50 | 345 | 3.5 |
| Centrox | 32 | 0.84 | 15 | 50 | 345 | 3.5 |
| Centrox-CR (direct supply of oxygen, no cylinder filling) |
32 | – | – | 50 | – | – |
* SCF (Standard cubic foot) gas measured at 1 atmosphere and 70°F.
* Nm3 (Normal cubic meter) gas measured at 1 atmosphere and 0°C.
* LPM (Liters Per Minute) gas measured at 1 atmosphere and 21°C.
